Description

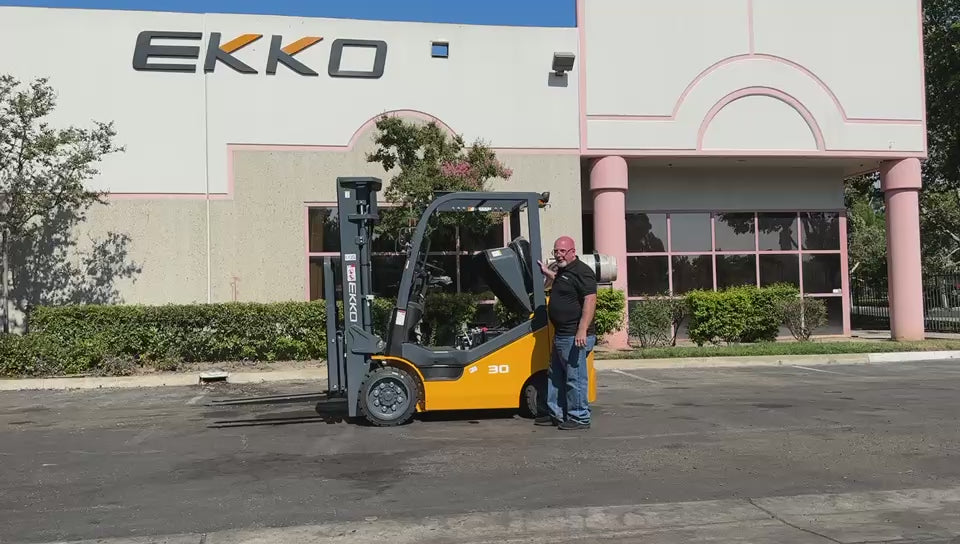

The EKKO EK30LP Liquid Propane 4 Wheel Forklift is engineered to address diverse material handling needs, excelling in both the construction industry and warehousing sectors. It's characterized by its powerful performance and high durability, making it a reliable workhorse for demanding tasks. This forklift is equipped with a Tier 4 EPA-compliant Kubota engine, ensuring efficient and environmentally responsible operations. With its competitive pricing, the EKKO EK30LP offers an exceptional value proposition for businesses seeking a robust and versatile forklift for construction, distribution, and warehousing applications.
Resources Sheets
Features:
-
Multifunction Instrument Panel:
- Motoring for safety and efficient operation.
-
Operator Compartment:
- Nonslip entrance step, wider access, and legroom.
- Adjustable steering column to limit operator arm and shoulder fatigue.
-
Excellent Operator Visibility:
- Ensures optimal visibility for the operator.
-
Integral Heavy-Duty Chassis:
- Ensures driver protection.
-
Tight Turning Radius:
- Steer axle pivots to 80 degrees for a tighter turning radius.
-

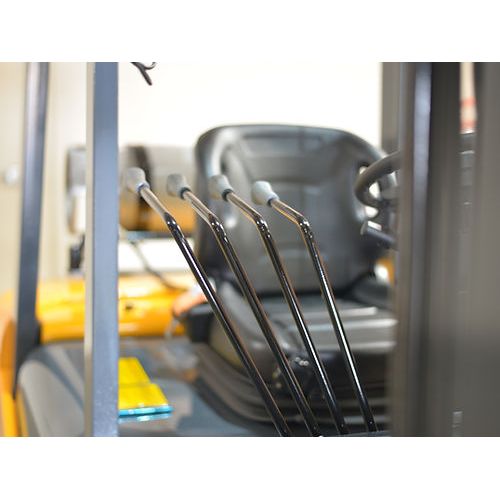

Hydraulic Controls:
- Efficient and responsive hydraulic controls.
Specifications:
- Drive Type: LPG
- Type of Operation: Propane
- Load Capacity: 6000 lbs
- Load Center: 24 inches
- Lift Height: 189 inches
- Wheelbase: 69 inches
- Service Weight: 10,320 lbs
- Tire Material: Pneumatic
- Wheel Size (Front/Rear): 28x9-15-12PR / 6.50-10-10PR inches
- Service Brake: Hydraulic Floor Pedal
- Overall Width: 48.2 inches
- Overall Length with Forks: 150.3 inches
- Overall Length without Forks: 108.2 inches
- Min Ground Clearance (at the mast): 4.53 inches
- Max Traveling Speed (Loaded/Unloaded): 11.8/11.8 mph
- Mast Overall Height: 89.40 inches
- Free Lifting Height: 40.9 inches
- Backrest Height (from the surface of the forks): 46.54 inches
- Fork Size: 42.13x4.92x1.77 inches
- Battery: 12V/80Ah

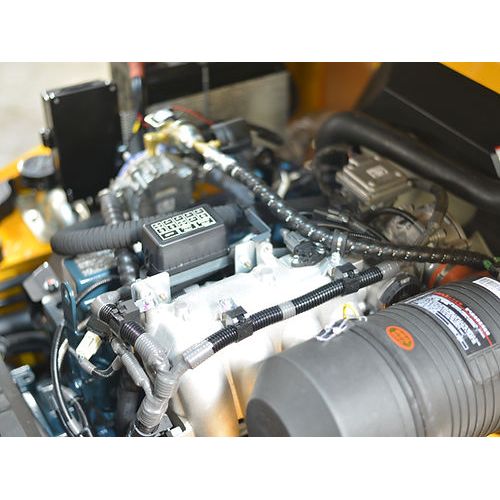

- Engine Mode: Kubota WG2503
- Engine Rated Power (LPG): 58.3 HP at 2600 rpm
