EKKO EK07S Compact Counterbalance Walkie Stacker - 1550 lbs Capacity, 118-inch Lift Height, Ideal for Precise Indoor Material Handling
Enjoy Free Premium Shipping On All Orders!
Call Us +1 (816) 635-0030 For Huge Discounts On Equipment!
Need Financing? Fill out this form with H.I.L Financial to get a fast approval!
Why Buy From Us?
- Call for Exclusive Discounts on equipment!
- We sell only top-quality, highly-reviewed products.
- Parts & Service Support for all equipment.
- Free Premium Shipping on all orders.
- Alternative Payment Methods available:
- Flexible Financing Options to suit your needs.
- All equipment comes with either a Limited Warranty or a Lifetime Warranty.
Description

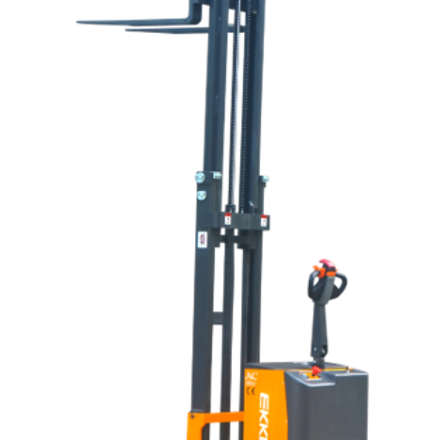

The EKKO EK07S Fully Powered Counterbalance Walkie Stacker combines the versatility of a forklift and a walkie stacker, making it ideal for various applications such as loading and unloading trucks, managing loading docks, stock rooms, manufacturing floors, and warehousing. Built with high-quality steel and components, this stacker features durable drives to withstand challenging terrains, usage scenarios, impacts, and directional changes with confidence and assurance. It has an impressive load capacity of 1550 lbs and can reach a raised height of 118" (9.83ft). The stacker is equipped with adjustable forks (8.3-25.2"), a Curtis Controller, 24V AC Drive Motor, 24V Lift Motor, polyurethane wheels, ergonomic handle and controls, and it comes with an on-board charger. The battery is included, and the stacker is backed by a 3-year limited warranty.
Resources Sheets
Features
- Load Capacity 1550lbs.
- Raised Height 118" (9.83ft)
- Adjustable Forks 8.3-25.2"
- Fork Length 42"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- On-Board Charger Included
- BatterY Included
- 3 Years Limited Warranty

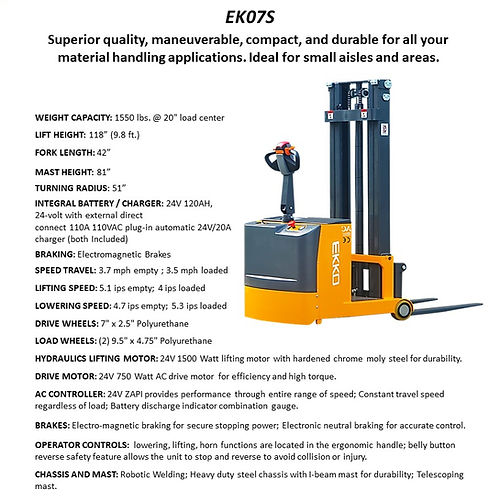

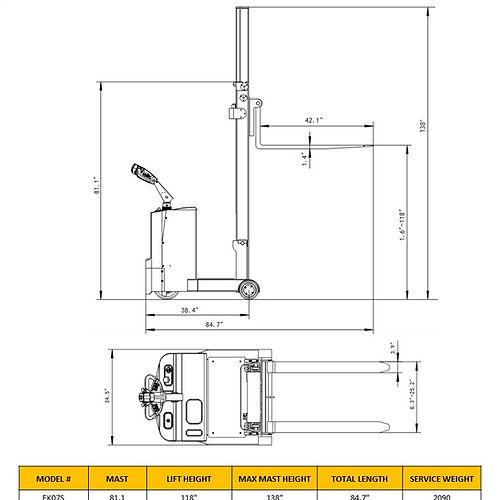

Specifications
- Model: EK07S
- Lift: Electric
- Drive: Electric
- Load capacity: (lbs) 1550
- Load center distance: (in) 20
- Lifting height: (in) 118
- Lowered mast height: (in) 81.1
- Overall length: (in) 84.7
- Overall width: (in) 34.5
- Fork size, Thick/Width/Length: (in) 1.4/2.9/42
- Fork adjust width: (in) 8.3-25.2
- Turning radius: (in) 51
- Internal Charger: 24V/20A
- Driving Motor: AC 24V/0.75kw
- Lifting Motor: 24V/1.5kw
- Battery voltage: 24V/120AH
- Service Weight: (lbs) 2090
