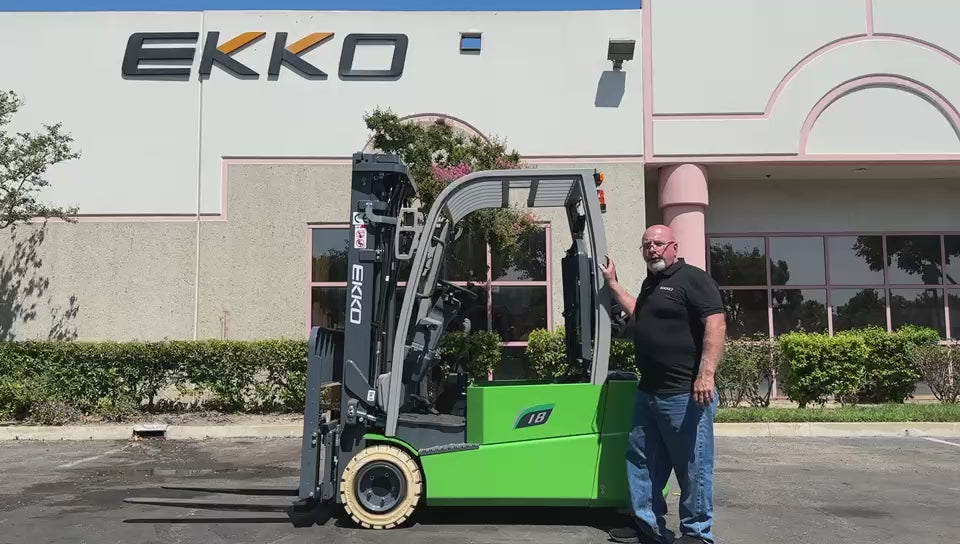

EKKO EK18A-189LI Electric Powered Forklift for Material Handling

Description:

The EKKO E18A-189LI 3 Wheel Lithium Forklift is an agile and efficient equipment choice, designed to seamlessly tackle a wide array of material handling requirements. It excels in critical tasks such as loading and unloading trucks, managing inventory in warehouses, and navigating through manufacturing floors. This forklift is constructed from top-grade steel and components, ensuring its durability and reliability in a variety of working conditions. The integration of a lithium battery not only enhances its performance but also contributes to its longevity and reduced maintenance needs. Its adaptability and robust build make the EKKO E18A-189LI a dependable choice for businesses that demand confidence and assurance in their material handling solutions across diverse applications.

Applications

• Truck Loading and Unloading: Efficiently handles loading and unloading tasks, ensuring smooth operations in areas with limited space and high turnover.
• Warehouse Inventory Management: Ideal for organizing, retrieving, and managing stock in warehouses, improving efficiency in both small and large-scale operations.
• Manufacturing Floor Operations: Facilitates quick and easy material movement across manufacturing floors, supporting uninterrupted production processes.
• Narrow Aisle Maneuvering: Perfect for tight spaces, this forklift excels in navigating narrow aisles, maximizing storage capacity and improving workflow efficiency.
• Loading Dock Management: Optimizes productivity in loading docks, making the loading and unloading process faster and more efficient in limited spaces.
• Retail and Wholesale Distribution: Suitable for retail backrooms and wholesale distribution centers, offering ease of handling and maneuverability in confined areas.
• Eco-Friendly Operations: The lithium battery offers significant energy savings, reduces environmental impact, and minimizes maintenance requirements, making it an eco-conscious choice for sustainable material handling.

Resources Sheets

• Service Manual
• Parts List
• Warranty

Features:

• Power unit: Lithium
• Operation Type: Rider
• Loading capacity: 4000 LBS
• Load center: 24 Inch
• Axle center to fork face: 14.6 Inch
• Wheelbase: 55.1 Inch
• Service weight with battery: 7341 LBS
• Wheels type: Solid Pneumatic
• Tire size front: 200/50-10
• Tire size rear: 16x6-8
• Wheels: 2×/2
• Tread, front: 36.5 Inch
• Tread, back: 9.8 Inch
• Mast Tilt (°): 3/5
• Lowered mast height: 86.2 Inch
• Free lift height: 46.5 Inch
• Lift height: 189 Inch
• Height of overhead guard (cabin): 80.3 Inch
• Height of seat: 41.9 Inch
• Overall length: 116.9 Inch
• Overall width: 44.1 Inch
• Ground clearance under mast: 3.5 Inch
• Min.Ground clearance: 3.5 Inch
• Min.Turning radius: 65.9 Inch
• Travel speed, laden/unladen: 10/10 mph
• Lifting speed, with/without load: 78.7/118.1 fpm
• Lowering speed, with/without load: 114.2/98.4 fpm
• Climbing ability, with/without load: 22/30 %
• Service brake: Hydraulic
• Drive motor, 60-minute rating: 7.7x2 hp
• Lift motor rating at S3 15%: 18.8 hp
• Battery voltage/rated capacity: 80/202Ah Lithium
• Type of drive control: MOSFET/AC

Specifications:

• Load Capacity: 4000 lb
• Raised Height: 189" (15.75ft)
• Side Shifting Forks
• Free Lift: 46.5”
• Adjustable Forks
• Hydraulic Steering
• ZAPI controller
• Battery: 80V/202Ah Lithium (included)
• Solid Pneumatic Tires
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• 3-Phase 480V Charger (optional 220V & 110V)
• 3 Year Limited Warranty
