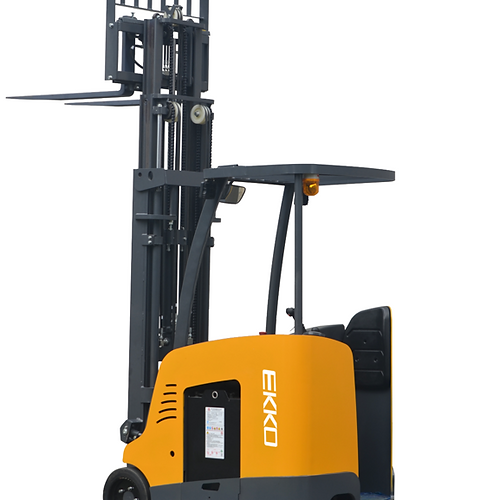

EKKO EK18RF Stand-up Electric Rider Forklift for Material Handling, 4000 lb Cap., 216" Lift Ht. 48V
Enjoy Free Premium Shipping On All Orders!
Call Us +1 (816) 635-0030 For Huge Discounts On Equipment!
Need Financing? Fill out this form with H.I.L Financial to get a fast approval!
Why Buy From Us?
- Call for Exclusive Discounts on equipment!
- We sell only top-quality, highly-reviewed products.
- Parts & Service Support for all equipment.
- Free Premium Shipping on all orders.
- Alternative Payment Methods available:
- Flexible Financing Options to suit your needs.
- All equipment comes with either a Limited Warranty or a Lifetime Warranty.
Description
The EKKO EK18RF Stand-up Rider Forklift is a versatile and efficient solution tailored to meet a wide range of material handling requirements. This forklift is ideal for activities including loading and unloading trucks, operating in loading docks, managing inventory in stock rooms, and maneuvering across manufacturing floors and warehouse spaces. Its stand-up rider design offers ease of use and improved maneuverability, making it a suitable choice for environments where quick and frequent access to the forklift is necessary. The EKKO EK18RF is designed to enhance productivity and efficiency in various settings, providing a reliable and user-friendly option for diverse material handling needs.
Applications
-
Material Handling: Designed for efficient movement of materials and heavy pallets within warehouses, ensuring smooth and reliable operation in various settings.
-
High-Lift Operations: With a lift height of 216 inches, this forklift is ideal for accessing high storage racks, enabling easy retrieval and placement of goods.
-
Heavy Load Capacity: Capable of lifting up to 4,000 lbs, the EK18RF is perfect for handling large, bulky items, increasing productivity in material handling tasks.
-
Stand-Up Design: The stand-up configuration allows for easy entry and exit, providing operators with flexibility and comfort during extended use, especially in tight spaces.
-
Narrow Aisle Navigation: Ideal for operating in narrow aisles, the EK18RF maximizes warehouse space and enhances maneuverability, improving overall storage efficiency.
-
Loading and Unloading: Streamline loading and unloading processes for trucks and containers, reducing turnaround times and enhancing operational efficiency.
-
Order Picking: Optimize order picking operations with quick lifting and precise load handling, allowing operators to efficiently access products at various heights.
-
Inventory Management: Support effective inventory management by facilitating quick access to stored items, improving organization and reducing retrieval times.
-
Indoor Use: Designed for indoor operations, the EK18RF operates quietly and produces zero emissions, contributing to a cleaner and safer work environment.
-
Transporting Goods: Move goods efficiently between different areas of the warehouse, enhancing productivity and reducing manual handling efforts.
Resources Sheets
Features:
- Side Shifting Forks
- Adjustable Forks (9.4-35.6 inches)
- Fork Length: 45.3 inches
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery Included (48V/420Ah)
- Solid Cushion Load Tires
- Polyurethane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction with Robotic Welding
- Charger Included (48V/65A 480V)
- 3 Years Limited Warranty

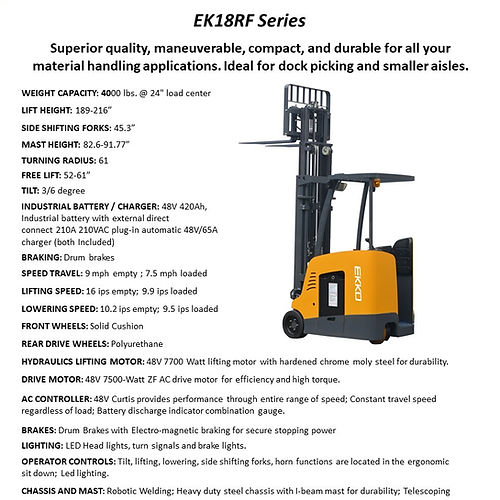

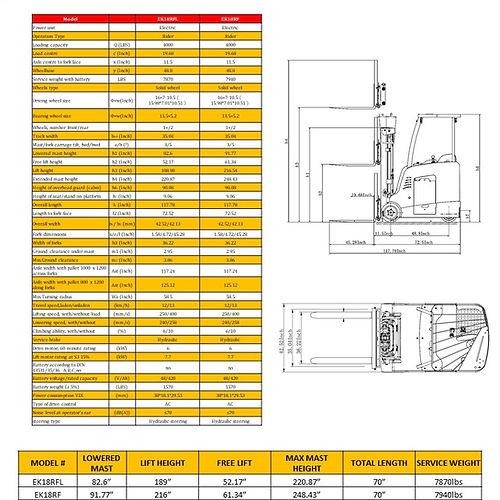

Key Specifications:
- Model: EK18RF
- Power Unit: Electric
- Operation Type: Rider
- Loading Capacity: 4000 lbs
- Load Center: 19.68 inches
- Axle Center to Fork Face: 11.5 inches
- Wheelbase: 48.8 inches
- Service Weight (with battery): 7940 lbs
- Wheels Type: Solid Wheel
- Driving Wheel Size: 16×7-10.5 inches
- Bearing Wheel Size: 13.5×5.2 inches
- Wheels (Number Front/Rear): 1×/2
- Track Width: 35.04 inches
- Mast/Fork Carriage Tilt (Fwd/Bwd): 3/5 degrees
- Lowered Mast Height: 91.77 inches
- Free Lift Height: 61.34 inches
- Lift Height: 216.54 inches (18 feet)
- Extended Mast Height: 248.43 inches
- Height of Overhead Guard (Cabin): 90.08 inches
- Height of Seat/Stand-on Platform: 9.06 inches
- Overall Length: 117.78 inches
- Length to Fork Face: 72.52 inches
- Overall Width: 42.52/42.13 inches
- Fork Dimensions (Thickness/Width/Length): 1.58/4.72/45.28 inches
- Width of Forks: 36.22 inches
- Ground Clearance Under Mast: 2.95 inches
- Min. Ground Clearance: 3.86 inches
- Aisle Width with Pallet 1000 x 1200 (Across Forks): 117.24 inches
- Aisle Width with Pallet 800 x 1200 (Along Forks): 125.12 inches
- Min. Turning Radius: 58.5 inches
- Travel Speed (Laden/Unladen): 12/13 km/h
- Lifting Speed (With/Without Load): 250/400 mm/s
- Lowering Speed (With/Without Load): 240/258 mm/s
- Climbing Ability (With/Without Load): 6/10%
- Service Brake: Hydraulic
- Drive Motor (60-minute rating): 6 kW
- Lift Motor Rating at S3 15%: 7.7 kW
- Battery Voltage/Rated Capacity: 48V/420Ah
- Battery Weight (± 5%): 1570 lbs
- Power Consumption VDI: 3818.129.53 mm
- Type of Drive Control: AC
- Noise Level at Operator's Ear: ≤70 dB(A)
- Steering Type: Hydraulic Steering
