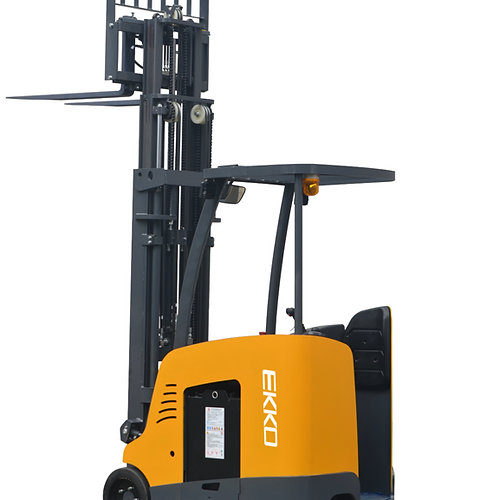

EKKO EK18RFL Stand-up Electric Rider Forklift for Material Handling, 4000 lb Cap., 189" Lift Ht. 48V

Description

The EKKO EK18RF Stand-up Rider Forklift is engineered to cater to a comprehensive range of material handling tasks, making it a perfect fit for diverse applications including loading and unloading trucks, managing stock rooms, operating on manufacturing floors, and functioning in warehousing environments. Constructed with high-quality steel and robust components, this forklift is designed to endure challenging terrains, absorb impacts, and efficiently handle frequent directional changes. Its stand-up rider design not only enhances maneuverability but also ensures ease of use, making it an ideal choice for operations where agility and durability are key. The EKKO EK18RF offers a blend of strength, reliability, and versatility, meeting all your material handling needs with excellence.

Applications

• Material Handling: Optimized for efficiently moving materials and pallets throughout warehouses, providing reliable performance for various handling tasks.

• High-Lift Operations: With a lift height of 189 inches, this forklift is ideal for accessing high storage areas, enabling easy retrieval and placement of goods.

• Heavy Load Capacity: Capable of lifting up to 4,000 lbs, the EK18RFL is designed to handle heavy and bulky items, increasing productivity in material handling operations.

• Stand-Up Design: The stand-up configuration allows for quick entry and exit, providing operators with flexibility and comfort, particularly useful in tight spaces.

• Narrow Aisle Navigation: Excellent for maneuvering in narrow aisles, the EK18RFL maximizes warehouse space and enhances agility, improving overall storage efficiency.

• Loading and Unloading: Streamline the loading and unloading of goods from trucks and shipping containers, reducing turnaround times and enhancing operational workflows.

• Order Picking: Optimize order picking processes with quick lifting and precise load handling, allowing operators to access products at various heights efficiently.

• Inventory Management: Support effective inventory organization by facilitating quick access to stored items, improving overall efficiency and minimizing retrieval times.

• Indoor Use: Designed for indoor operations, the EK18RFL operates quietly and produces zero emissions, contributing to a cleaner and safer work environment.

• Transporting Goods: Move goods seamlessly between different areas of the warehouse, enhancing productivity and reducing manual handling efforts.

Resources Sheets

• Service Manual
• Parts List
• Warranty

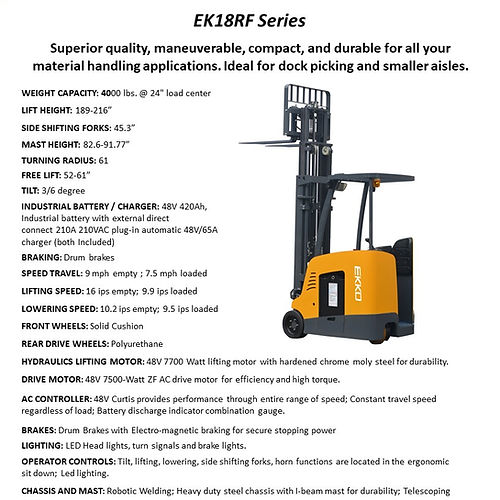

Features

• Load Capacity: 4000 lb
• Raised Height: 189" (15.75ft)
• Side Shifting Forks
• Adjustable Forks: 9.4-35.6"
• Fork Length: 45.3“
• Hydraulic Steering
• Curtis Instrument Controller
• German AC Drive Motor
• Battery: 48V/420Ah (included)
• Charger: 48V/65A 480V
• Solid Cushion Load Tires
• Polyurethane Drive Tires
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• 3 Year Limited Warranty

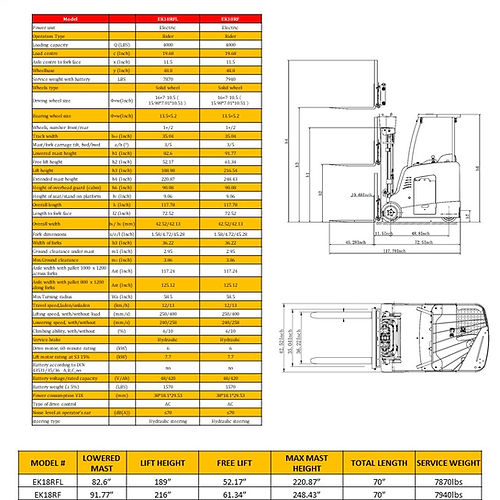

Specifications

• Model: EK18RFL
• Power Unit: Electric
• Operation Type: Rider
• Loading Capacity (Q): 4000 LBS
• Load Centre (c): 19.68 Inch
• Axle Centre to Fork Face (x): 11.5 Inch
• Wheelbase (y): 48.8 Inch
• Service Weight with Battery: 7870 LBS
• Wheels Type: Solid Wheel
• Driving Wheel Size (Φ×w): 16×7-10.5 (15.98×7.01×10.51) Inch
• Bearing Wheel Size (Φ×w): 13.5×5.2 Inch
• Wheels, Number Front/Rear: 1×/2
• Track Width (b10): 35.04 Inch
• Mast/Fork Carriage Tilt, Fwd/Bwd (a/b): 3/5 degrees
• Lowered Mast Height (h1): 82.6 Inch
• Free Lift Height (h2): 52.17 Inch
• Lift Height (h3): 188.98 Inch
• Extended Mast Height (h4): 220.87 Inch
• Height of Overhead Guard (Cabin) (h6): 90.08 Inch
• Height of Seat/Stand-on Platform (h7): 9.06 Inch
• Overall Length (l1): 117.78 Inch
• Length to Fork Face (l2): 72.52 Inch
• Overall Width (b1/b2): 42.52/42.13 mm
• Fork Dimensions (s/e/l): 1.58/4.72/45.28 Inch
• Width of Forks (b3): 36.22 Inch
• Ground Clearance Under Mast (m1): 2.95 Inch
• Min. Ground Clearance (m2): 3.86 Inch
• Aisle Width with Pallet 1000 x 1200 Across Forks (Ast): 117.24 Inch
• Aisle Width with Pallet 800 x 1200 Along Forks (Ast): 125.12 Inch
• Min. Turning Radius (Wa): 58.5 Inch
• Travel Speed, Laden/Unladen: 12/13 km/h
• Lifting Speed, with/without Load: 250/400 mm/s
• Lowering Speed, with/without Load: 240/258 mm/s
• Climbing Ability, with/without Load: 6/10%
• Service Brake: Hydraulic
• Drive Motor, 60-minute Rating: 6 kW
• Lift Motor Rating at S3 15%: 7.7 kW
• Battery Voltage/Rated Capacity: 48/420 V/Ah
• Battery Weight (± 5%): 1570 LBS
• Power Consumption VDI: 38×18.1×29.53 mm
• Type of Drive Control: AC
• Noise Level at Operator‘s Ear: ≤70 dB(A)
• Steering Type: Hydraulic Steering
