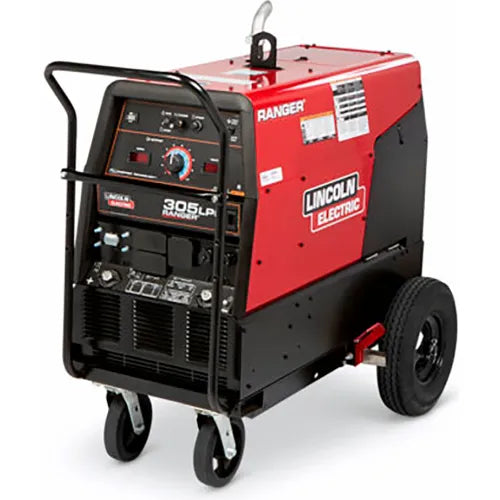

Lincoln Electric Ranger 305 LPG Engine Driven Welder, Kohler, One-Pak, 300A, 60 Hz, Red

Description

Ranger® 305 LPG: Clean Power and Versatile Welding Solutions

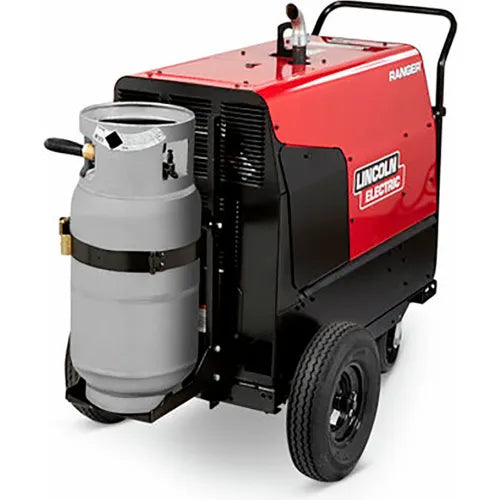

The Ranger® 305 LPG is the ideal choice for environments where gasoline or diesel emissions are not acceptable. It features a liquid propane gas (LPG) supply hose with a coupler for easy connection to the liquid draw outlet of an LPG cylinder. This machine offers 10,000 watts of peak single-phase AC generator power, supporting motor starting, power tools, and inverter welders for extended capability across a range of applications.

Key Features:

• Powerful Kohler® Engine: Equipped with a top-of-the-line 25 HP Command® LPG engine from Kohler®, featuring overhead valve (OHV) technology for enhanced efficiency and performance.

• Digital Weld Meters: Monitor actual welding output with precision using the integrated digital weld meters, which display both amps and volts to help pre-set procedures and monitor performance.

• Multi-Process Welding: Delivers outstanding DC multi-process welding for various applications including general-purpose stick, downhill pipe (stick), TIG, cored-wire, and MIG (CO2 and mixed gas). It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding. Supports CV wire welding with electrodes up to 5/64 in. (2.0 mm).

• Superior Arc Performance: Lincoln Electric’s Chopper Technology® ensures easy starts, smooth arcs, low spatter, and an excellent bead appearance, resulting in superior weld quality.

• 10,000 Watts Peak Single-Phase AC Generator Power: Offers 10,000 watts of peak power for motor starting and 9,000 watts continuous power to meet high-capacity needs. It is suitable for use as a backup generator or for powering Lincoln Electric® Invertec® inverter welders, lights, grinders, and other tools. AC generator voltage remains constant at 120V or 240V regardless of the weld dial setting.

• Rugged Reliability: Both the welding and AC generator outputs are rated for reliable performance even at high temperatures, up to 104°F (40°C).

• 25 HP Kohler® LPG Engine: The LPG engine provides ample horsepower for demanding tasks while maintaining the benefits of a cleaner fuel source.

Processes Supported: Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), and Flux-Cored Gas-Shielded (FCAW-G).

What's Included:

• (1) K2937-1 Ranger 305 LPG Engine Driven Welder
• (1) K1770-2 Factory Undercarriage (Pneumatic)

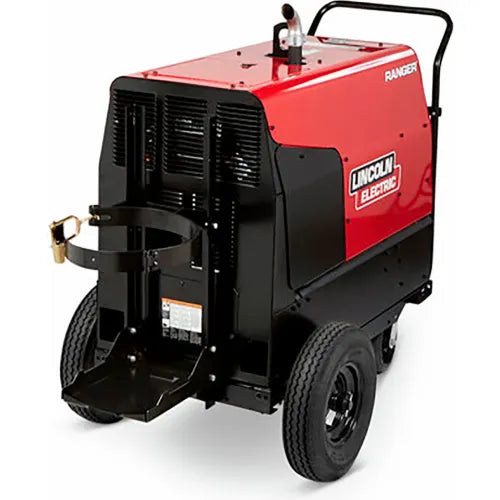

• (1) K1745-2 LPG Tank Holder
