CM Lodestar VS Electric Chain Hoist, 3 Ton, 10’ Lift, .9-5.5 FPM, 115-1-60, 3-Step IV Control
Need Financing? Fill out this form with H.I.L Financial to get a fast approval!
Expert Support Available! 24/7 via Live Chat or Call Us +1 (816) 635-0030
Email us for discount pricing at Mason@constructzilla.com!
Warranty & Part Replacement Policys
All equipment comes with a Limited or Lifetime Warranty!
Multiple Financing & Payment Methods
We accept ACH transfers, money wires and checks as alterative payment methods while also providing multiple financing options for customers.
Description
CM Lodestar VS Electric Chain Hoist With Chain Container, 3 Ton, 10' Lift, .9-5.5 FPM Variable Speed, 115-1-60 Single Phase, 3-Step infinitely Variable Control - LV30053D103VA
Ideal for applications requiring precise load control. Exceeds H4 requirements. Engineered for high duty cycles and the toughest applications. The CM Lodestar VS is ideal for applications in the automotive, heavy OEM, utility and energy industries. Choose this reliable hoist for assembly workstations that require high speed and precision control lifting with light rail or trolley systems. In addition, the Lodestar VS is perfect for maintenance and repair applications demanding accurate load control or long lifts. Improved Load Safety and lifetime Warranty; the industry's best warranty against manufacturing and material defects.
Standard Features:

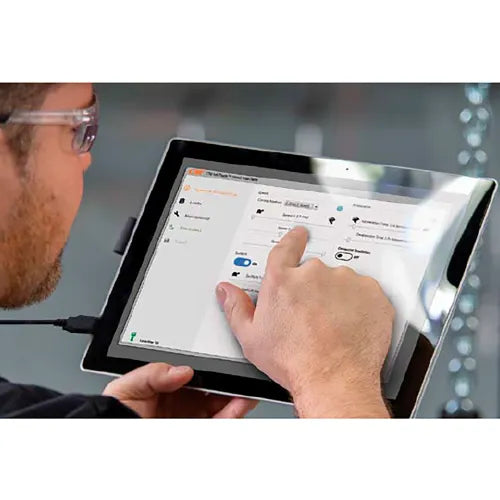

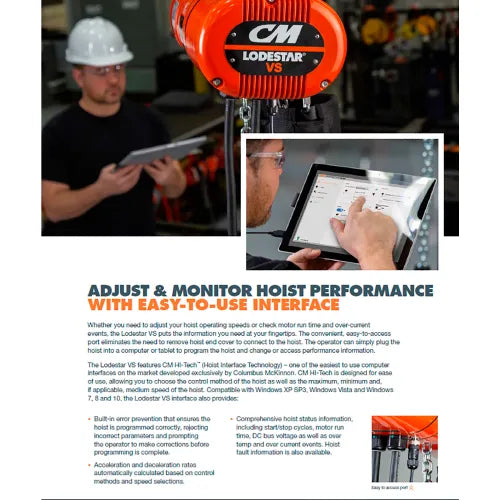

Hoist Interface Technology
- Effortlessly customize your hoist for any application with intuitive and easy-to-use programming software (sold separately: CM part number 192061059)
- Connect with USB cord to set speed, acceleration/deceleration rates, swift lift, limit switches, overload protection, and more. No programming experience necessary. Compatible with Windows XP SP3, Windows Vista and Windows 7, 8 and 10. Only 1 kit needed to customized multiple hoists.
Less Maintenance & Easy Inspection
Easy access to the clutch, motor, electrical control panel and brake assembly. Lifetime grease-lubricated gear box eliminates need for oil changes.
Long Service Life
Heavy-duty motor (H4 Duty) & DC brake for high duty cycles & tough applications. Powder-coated covers and zinc-plated chain protects against corrosion. 5-pocket lift wheel provides for smoother lifting and reduced vibration, equating to less wear and a longer chain life. Compact & durable Push-Button pendant.
Improved Load Capacity
Clutch is located outside the load path, preventing slipping of the load in an overload condition when the brake is not powered.
Fabric Chain Container Included for lifts up to 20 ft. Metal, Stainless Steel, & longer lift options available.
Optional Features:
Hoist Interface Kit (Programming Cable & Software -See info above under HOIST INTERFACE TECHNOLOGY)
Additional Load Chain Options
Specifications
Weights & Dimensions
- Width 12.62 in
- Height 32.31 in
- Weight 180 lbs
- Control Cord Length 6 ft
- Weight Capacity 6000 lbs
- Lift 10 ft
- Hook Opening 1.37 in
- Head Room 29-31/100 in
- Lift Speed .9 to 5.5 ft/min
- Length 22.94 in
Product Details
- Assembly Required No
- Material Aluminum
- Phase 1
- Manufacturers Part Number LV30053D103VA
- Suspension Hook
- Brand CM
- Type Chain Hoist
- Horsepower 1 HP
- Color Orange
- Series Lodestar VS
- Hertz 60 Hz
- Duty Rating H4
- Country of Origin USA
- Voltage 115 V
- Chain Falls 3
Warranty
- Warranty Lifetime
Compliance & Certifications
- Certifications ASME B30.16
