EKKO ES120E-LI Aerial Work Platform - 39' Lift Height (468''), Lithium-Ion Battery for Efficient Elevated Access
Need Financing? Fill out this form with H.I.L Financial to get a fast approval!
Expert Support Available! 24/7 via Live Chat or Call Us +1 (816) 635-0030
Warranty & Part Replacement Policys
All equipment comes with a Limited or Lifetime Warranty!
Multiple Financing & Payment Methods
We accept ACH transfers, money wires and checks as alterative payment methods while also providing multiple financing options for customers.
Description
The EKKO ES120E-LI Scissor Aerial Work Platform is a robust and dependable solution with a remarkable 700-lb lifting capacity, making it highly efficient for lifting, transporting loads, and moving products. Equipped with four wheels and a Curtis controller, it offers ease of operation and precise control. Moreover, this product adheres to the rigorous standards of both GB25849 and EN280, ensuring top-tier design and manufacturing quality, and providing assurance of its high performance and reliability for various industrial applications.
Resources Sheets
Features:
- Load Capacity: 700 lbs
- Raised Height: 39' (468'')
- Lowered Height: 102.36''
- Size: Length 89" x Width 45"
- Steel construction
- 3 Years Limited Warranty

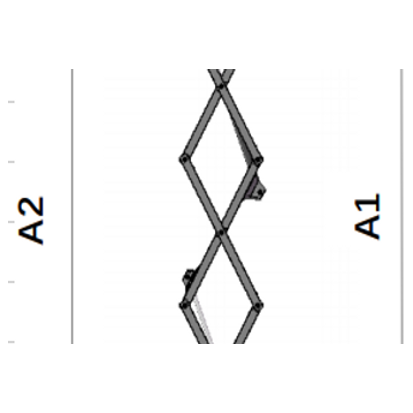

Product Dimensions:
- A1 Max Working Height: 45' (547'')
- A2 Max Platform Height: 39' (468'')
- B Length: 94.5 inches
- C Width: 45.27 inches
- D Overall Height (Guardrail Not Folded): 102 inches
- Overall Height (Folding Guardrail): 77 inches
- Platform Size (Length x Width x Height): 88.58x45.27 inches
- G Guardrail Height: 43.3 inches
- H Platform Extension Size: 39.37 inches
- I Ground Clearance (Closed State): 3.74 inches
- J Ground Clearance (Lifting State): 0.78 inches
- K Wheelbase: 72.83 inches
Product Performance:
- Maximum Number of Workers (Indoor/Outdoor): 2 / -
- Load Rating: 700 lbs
- Extended Platform Load Rating: 265 lbs
- Driving Speed (Folding State): 0-3.2 km/h
- Driving Speed (Lifting Condition): 0~0.8 km/h
- Minimum Turning Radius (Inside): 0 inches
- Minimum Turning Radius (Outside): 86.61 inches
- Rise/Fall Time: 52/52 seconds
- Maximum Allowable Tilting Angle (Front/Left/Right): 3°/1.5°
- Maximum Allowable Wind Speed (Indoor/Outdoor): 0/0 m/s
- Maximum Allowable Lateral Force (Indoor/Outdoor): 400/0 N
- Gradeability: 30%
- Control: Proportional Control
- Actuator: Double Front Wheels
- Braking: Double Rear Wheels
- Tyre Specification/Type: 15*5 inches
Product Power:
- Lift/Drive Motor: 3.3/0.7x2 kW
- Battery Voltage/Capacity: 25.6V/230AH
- Charger Input Voltage: 25.6VAC
- Charger Output Current: 36A
- Control Voltage: 24 VDC
- Hydraulic Tank Capacity: 22 L
- Total Weight: 6490 lbs
